Trunnion Mounted Ball Valves, WCB, 6 Inch, 600 LB, RF Flanged

Trunnion Mounted Ball Valves, WCB, 6 Inch, 600 LB, RF Flanged
Trunnion Mounted Ball Valves, WCB, 6 Inch, 600 LB, RF Flanged

Key Specifications / Features

Model No.: LV-TMBV-20260318-03
Hits: 23

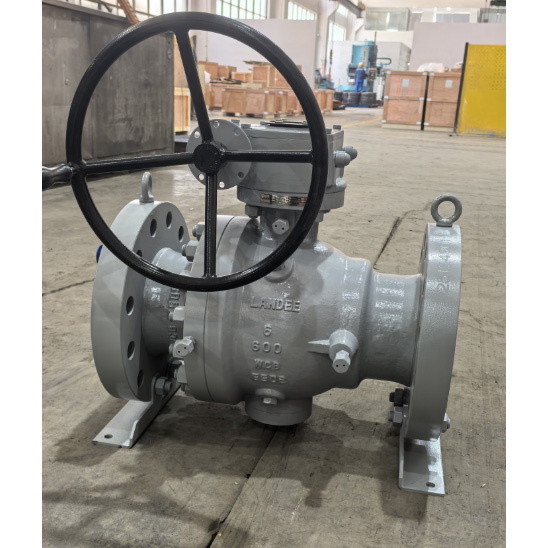

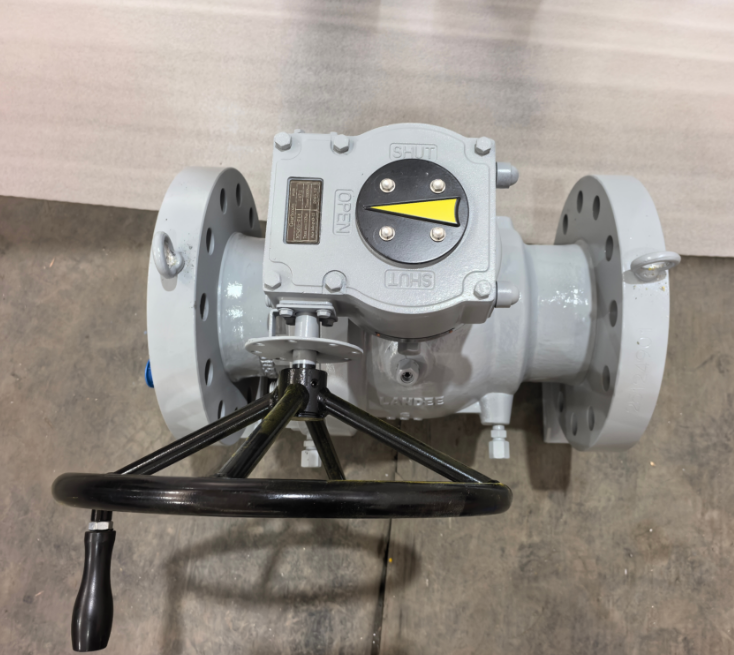

This 6-inch (DN150) trunnion-mounted ball valve features a durable carbon steel ASTM A216 WCB body and a high-performance ASTM A182 F316 ball, providing excellent strength and corrosion resistance for demanding industrial applications. Equipped with a PEEK seat, it ensures reliable sealing, smooth operation, and long service life under high-pressure conditions, rated at Class 600 LB. The RF flanged ends allow secure, leak-proof installation in standard piping systems. Ideal for oil, gas, chemical, and power industries, this valve delivers precision flow control and durability. As a leading trunnion-mounted ball valves factory in China, we provide premium valves engineered for performance and reliability.


Detail Information

Product Name: Carbon Steel Trunnion Ball Valve
Type: Trunnion Mounted Ball Valve
Size: 6 Inch, DN150, 150 mm
Pressure Rating: Class 600 LB, PN100
Body Material: ASTM A216 WCB
Ball Material: ASTM A182 F316
Seat Material: PEEK
Stem Material: 17-4 PH
End Connection: RF Flanged
