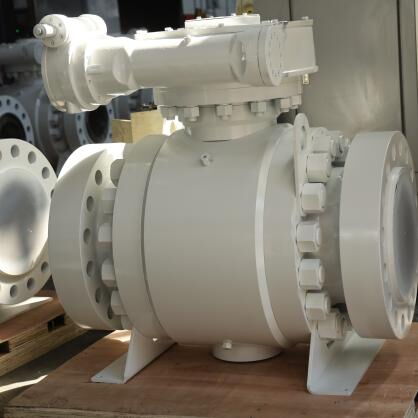

Trunnion Mounted Ball Valve, A105N, API 6D, 8 IN, CL900, RTJ

Name: Trunnion Mounted Ball Valve, A105N, API 6D, 8 IN, CL900, RTJ
SKU: lv-tmbv-20250909-01
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model No.: LV-TMBV-20250909-01 Hits: 11

As a trusted China supplier of trunnion mounted ball valves, we offer high-quality solutions designed for durability and performance. Our valves feature a robust carbon steel ASTM A105N body with a full port design for maximum flow capacity. Built to meet API 6D standards, they include an ASTM A182 F316 stainless steel ball and stem, ensuring superior corrosion resistance and reliability in demanding applications. Sized at 8 inches and rated for Class 900 LB pressure, these valves come with RTJ flanged ends for secure and leak-proof connections.

Request a quote Share

Tags: ASTM A105N Ball Valve, API 6D Ball Valve, 8 Inch Ball Valve, Class 900 LB Ball Valve,

Previous: Trunnion Mounted Ball Valve, API 6D, WCB, 8 * 6 IN, 300 LB
Next: Trunnion Mounted Ball Valves, ASTM A182 F304, 8 Inch, 150 LB

Detail Information

API 6D Trunnion Ball Valves, DN200, PN150, RTJ Flanged.

Product Item: ASTM A105N Trunnion Ball Valves
Type: Trunnion Mounted, Full Port
Design Standard: API 6D
Body Material: ASTM A105N
Size: 8 Inch, DN200
Pressure Rating: Class 900 LB, PN150
Fire Safe Standard: API 607
Ball & Stem Material: ASTM A182 F316
Bolting: ASTM A193 B7 / ASTM A194 2H
Seat/Seal: FKM
O-Ring: Viton AED
End Connection: RTJ Flanged, ASME B16.5
Operator: Gear Operated

Trunnion Mounted Ball Valve, A105N, API 6D, 8 IN, CL900, RTJ
