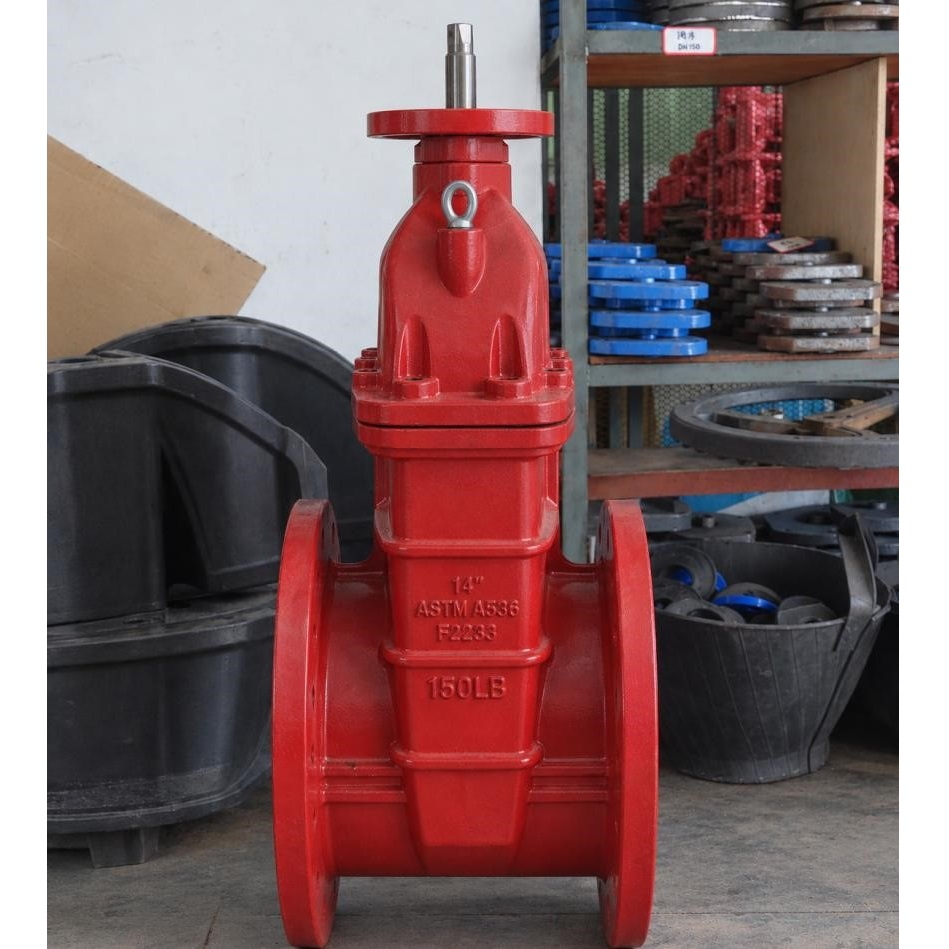

This 14-inch DN350 Class 150 LB wedge gate valve has a 290 mm face-to-face length. Its body and disc are ASTM A536 ductile iron, and the disc features EPDM covering. It is equipped with a 316 stainless steel stem, brass stem nut and gland, alongside SS316 bolts and nuts. The valve is coated with 250 μm red epoxy powder, shipped without an actuator, and is ideal for water supply and distribution pipelines for reliable fluid isolation.
Product Type: Wedge Gate Valve
Face-to-Face Length: 290 mm
Size: 14 Inch, DN350
Pressure rating: Class 150 LB
Body: ASTM A536 Ductile Iron
Disc: A536 Ductile Iron with EPDM Covering
Stem: Stainless Steel 316
Stem Nut: Brass
Gland: Brass
Bolts and Nuts: SS316
Actuator Configuration: No actuator
Surface Finish: Epoxy powder coating
Color: Red
Coating Thickness: 250 μm
Built with a 290 mm face-to-face dimension, this wedge gate valve comes with an A536 ductile iron body and an EPDM-protected disc. Internal components include an SS316 stem, brass stem nut, and gland, while all bolts and nuts are SS316 for corrosion resistance. A robust red epoxy powder coating of 250 microns is applied across the exterior; the actuator is not included in the supply.
Well suited for water supply mains, water distribution lines, and general water service pipelines, serving as dependable isolation equipment to open and close flow.
