Key Specifications / Features
Model No.: LV-GTV-20251030-01 Hits: 13

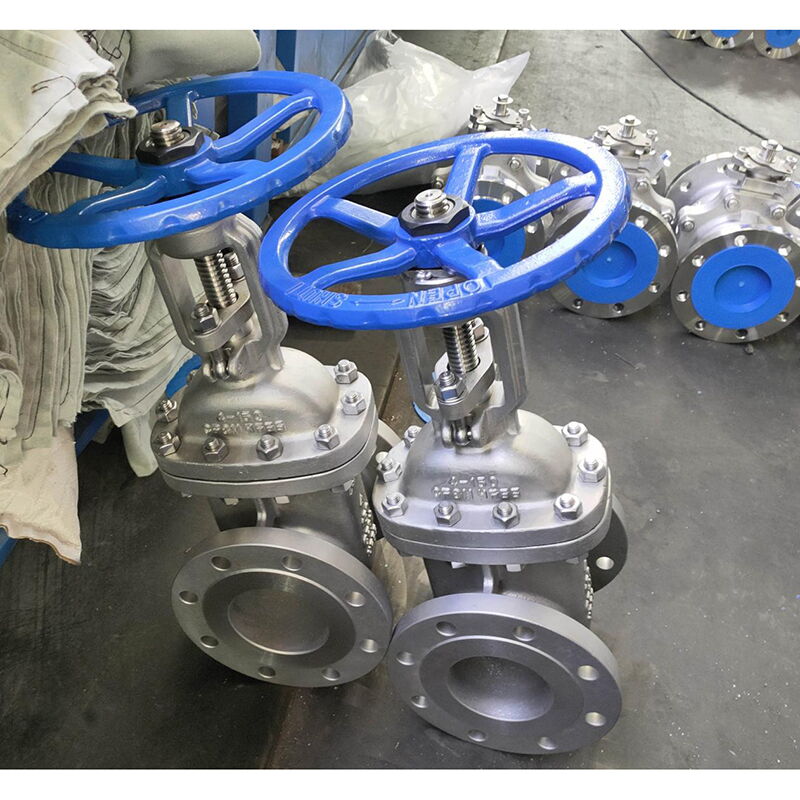

As a leading gate valve factory in China, we manufacture high-quality API 600 Gate Valves made from ASTM A351 CF8M stainless steel for superior corrosion resistance and durability. This 4-inch (DN100) valve, rated Class 150 LB / PN20, features a Trim 12# configuration with an A182 F316 + Stellite 6 hard-faced seat for excellent wear performance and tight sealing. Designed with an OS&Y (Outside Screw and Yoke) structure and a bolted bonnet, it ensures easy maintenance and reliable operation. The RF flanged ends provide secure, leak-free connections suitable for a wide range of industrial applications.
