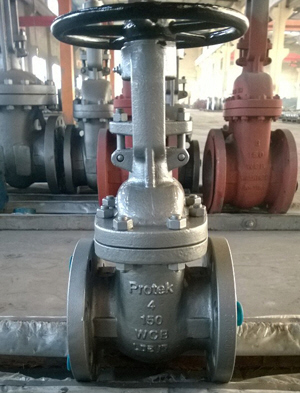

Solid Wedge Cast Steel Gate Valve, DN100, 150LB

Name: Solid Wedge Cast Steel Gate Valve, DN100, 150LB
SKU: LV 14 CGV 19
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model No.: LV 14 CGV 19 Hits: 882

China Cast Steel Gate Valve: Solid Wedge Cast Steel Gate Valves, API 600/598, DN100, 150LB, ASTM A216 Gr WCB, Rising Stem, Regular Bore, Bolted Gland.

Request a quote Share

Tags: 150LB, SS Trim, SS Stem, Flanged RF Ends, Solid Wedge, Handwheel, DN100, Cast Steel, WCB, ASTM A216, API 600, API 598, 4 Inch, Rising Stem,

Previous: Rising Stem Gate Valve, DI, Rotork Actuator
Next: Cast Iron GG25 Gate Valve, Non-Rising, DN150

Detail Information

Type: Cast Steel Gate Valve.

Size: 4 Inch (DN100).

Pressure: 150LB as per ANSI B16.34.

Flanged End Raised Face as per ANSI B16.5.

Design and Test Standards: API 600, API 598.

Body Material: ASTM A216 Grade WCB.

Stem Material: 13% Cr. SS.

Trim Material: 13% Cr. SS.

Seat Material: 13% Hard Faced Cr. SS.

Seat Ring Material: 13% Cr. Hard Face.

Wedge Disc Material: ASTM A216 Grade WCB.

Bolting Material: ASTM A193 Gr. B7 & A 194 Gr.2H.

Bore Design: Regular Bore Design.

Feature: Rising Stem.

Operator: Hand Wheel.

Style: Bolted Bonnet, Bolted Gland, Solid Wedge. Renewable Seats with Stem Protector, OS&Y.

Service Fluid: Refined Petroleum Products (Gasoline, Diesel, Kerosene, Jet A-1, LDO and Furnace Oil).
